Hot sales HD CCD night vision car rear front view camera for benz audi vw bmw toyota honda KIA … Universal camera LED lights
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
Guarantees: On-time Delivery 60 days
associated with camera

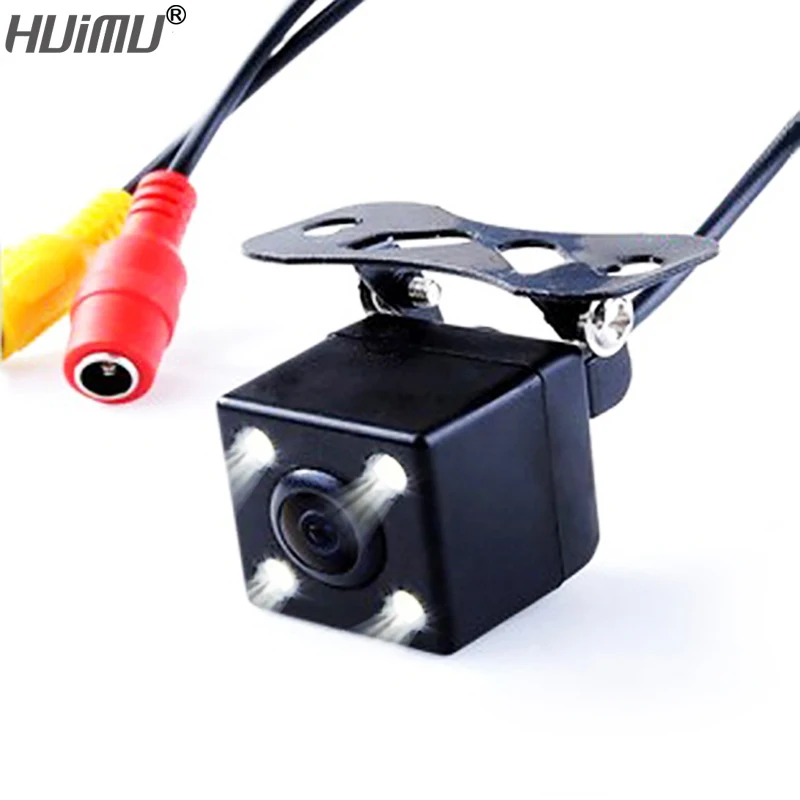

Special Car Rear View reverse backup Camera (rear view /front view /) It can be connect DVD AV plug (AV plug as default) and GPS 2.5mm plug(leave message),
Main feature:It can be 135 degree rotation
Note: CCD camera is high clear, better quality than the Colorful CMOS andCMD.
Kindly note: (If you want to buy wireless camera ,
please first you put the two product links into “add to car” then to buy
GUide: select your product
wireless camera only include :camera ,wireless reciever and Transmitter,manual ,not include wire.
The cable as below (6m AV cable as default)
(it is default)
If you need ,you have to leave message to us ,only can be send from China ,Can’t select for Russian and US shipment)
for wireless Transmitter receiver shown
1,when you connect normal monitor 4.3 /5″ ,DVD wihtout trigger line ,please select this
2,when you connect portable GPS for ,the plug is 2.5mm
IMPORTANT NOTE: if you will connect 7″ monitor or your DVd with reversing trigger line.please have to buy wireless receiver with trigger line,and please have to
the blue line is ACC reversing the priority line
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it can’t ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but can’t support any Driver recorder.
(2) Can the camera fit my car ?
In different countries, car models can be differentiated Please check your car license plate light cover or trunk hand size before you buy ,thanks.Maybe a few of the country’s camera are different.
(3)Do the camera have reference line?
there is reference line as default for rear camera
(4)About the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order(only support Shipment from China ).
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS can’t set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still can’t deal, please ask your local professional car staff for help.
2) The image occurred jitter, splash screen, unstable just because the
voltage is lower than we suggest.
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you don’t use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
All chips description below <1>below CCD camera’s image shown CCD camera is high clear, better quality than the Colorful CMOS andCMD
NOTES: The Night vision is just in case of reversing lamp, the Picture comes from real recording Video .
How to install : Specification:CCD chips description Specification:
|Image Sensors||1/3″Color CCD (default to be send)||
1/3″for CCDSony color
|TV System||NTSC/PAL(NTSC as default,If you want Pal system, please note it)|
|Sensing Area (mm)||3.3 x 2.6||3.3 x 2.6|
|Resolution (TV Lines)||520||600|
|Minimum illumination||0.1 Lux / F1.2||<0.1 Lux / F1.2|
|with lED’s 0.01Lux/F1.2|
|Horizontal Sync.Frequency||15.625 KHZ||15.625 KHZ|
|Vertical Sync.Frequency||50 HZ||50 HZ|
|Video Output||1.0Vp-P75 Ohm||1.0Vp-P75 Ohm|
|S/N ratio||Better than 48dB||Better than 48dB|
|Lens Angle (Deg.)||wide angle|
|Current Consumption (mA)||85~115|
|Power Supply (DC V)||12V||12V|
|Operating Temperature (Deg.C)||-20~+75(RH95% Max.)||-20~+75(RH95% Max.)|
|Storage Temperatur(Deg.C)||-40~+85(RH95% Max.)||-40~+85(RH95% Max.)|
For wire camera(this link only for wire)
1 x car Camera
For wireless camera:
1x car camera
Product quality certification
Payment and shippment: We accept ESCROW payment(ESCOW support many payment way such as Credit card, West Union). only and ship to address provided by Alixpress address. If you need to change your address,please note to us first as we will only ship to your Alixpress address. Make sure your detail address and full name in Alixpress is absolutely correct Contact us If you have any questions please feel free to contact us . We will respond within 1 business day or less.
It ‘s our honor to provide excellent service for you, thank you! Return policy What Happens If I have a Problem?
If you have a faulty or damaged item or for any reason receive what appears to be incorrect goods please contact us by chatting massage or email ,and explain your problem. We will respond within 1 full working day. Could I get my money back ?
Sure. if you want to return the item for above reason or any other seasons within 14 days after item received, we will offer a full refund to you once the item is sent back with original package. How about the return shipping fee ?
Please kindly know that the buyer will be responsible for the return shipping fee, thanks for your kindly understanding.Feedback:
Please leave us positive feedback and 5 stars in all detailed ratings if item received in good condition;
For Buyers that is not satisfied with your shopping Experience, you can always contact us first before you leave feedback;every problem could be worked out via good communication between both sides.Thank You So Much For Shopping in our store.
