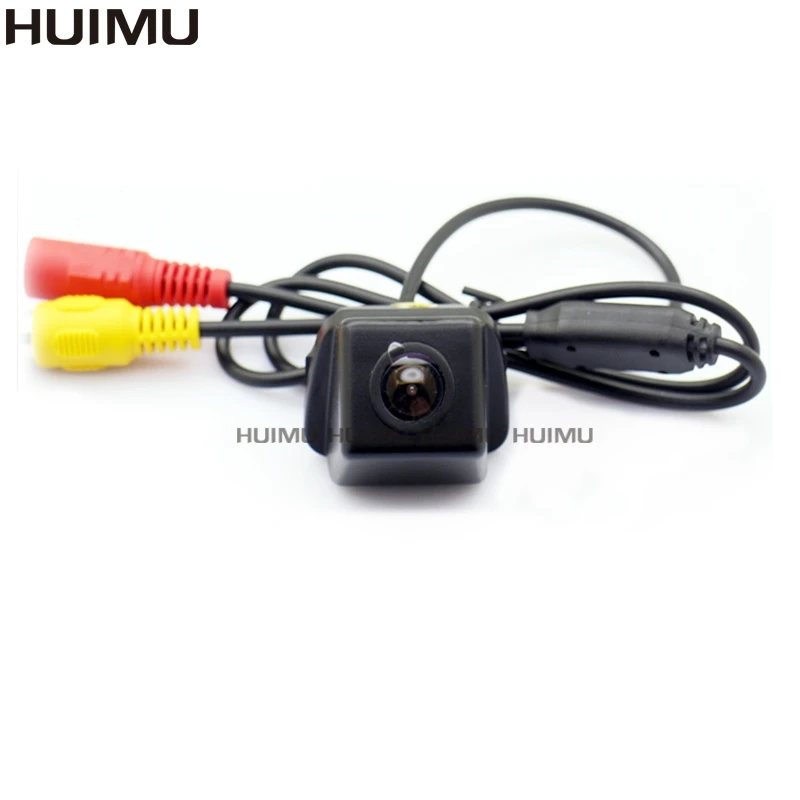

CAR REAR VIEW REVERSE BACKUP PARKING CAMERA
Type1:FOR TOYOTA PRIUS 2006-2010 /Aurion2006-2011/camry 2009 2010 2011
Type2:for 2012 prius
In different countries, car models can be differentiated
Please check your car license plate light cover’s size before you buy ,thanks.Maybe a few of the country’s camera are different.
below Type1:FOR TOYOTA PRIUS 2006-2010 /Aurion2006-2011/camry 2009 2010 2011
Type2:for 2012 prius
The cable as below (6m AV cable as default)
(it is default)
If you need ,you have to leave message to us ,only can be send from China ,Can’t select for Russian and US shipment)
for wireless Transmitter receiver shown
1,when you connect normal monitor 4.3 /5″ ,DVD wihtout trigger line ,please select this
2,when you connect portable GPS for ,the plug is 2.5mm
IMPORTANT NOTE: if you will connect 7″ monitor or your DVd with reversing trigger line.please have to buy wireless receiver with trigger line,and please have to
the blue line is ACC reversing the priority line
Common problems and solutions(Kindly answer your questions:)
(1) Can this camera install on rearview mirror recorder?
NO, it can’t ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but can’t support any Driver recorder.
(2) Can the camera fit my car ?
In different countries, car models can be differentiated Please check your car license plate light cover or trunk hand size before you buy ,thanks.Maybe a few of the country’s camera are different.
(3)Do the camera have reference line?
there is reference line as default for rear camera
(4)about the video line, it is AV or AVIN(2.5mm) for portable?
AV is default,if you need AVIN ,please leave message follow your order,(only support Shipment from China )
(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white color when you are reversing?
1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,
if your monitor is PAL system, it will be showed jitter , Black and white color.
a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.
Because there are many monitor with 2 system in market, it can set. But some old-type GPS can’t set. So please choose the right system to fit the camera.
b. Please must check the right cable connection installation.
c. If above solutions still can’t deal, please ask your local professional car staff for help.
2) The image occurred jitter, splash screen, unstable just because the
voltage is lower than we suggest.
Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,
it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.
(6)our car have video and power cable,Can you use it when I buy this camera?
Yes, it can, it support RCA plug. But we suggest you don’t use youself cable, because the line may be aging and defined different .
7.How to install?
a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.
b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop
All chips description below <1>below CCD camera’s image shown CCD camera is high clear, better quality than the Colorful CMOS andCMD
NOTES: The Night vision is just in case of reversing lamp, the Picture comes from real recording Video
How to install : Specification:CCD chips description Specification: 3pieces)
|Image Sensors||1/3″Color CCD (default to be send)||
1/3″for CCDSony color
(if you need camera for sony ccd,please pay for 3USD)
|TV System||NTSC/PAL(NTSC as default,If you want Pal system, please note it)|
|Sensing Area (mm)||3.3 x 2.6||3.3 x 2.6|
|Resolution (TV Lines)||520||600|
|Minimum illumination||0.1 Lux / F1.2||<0.1 Lux / F1.2|
|with lED’s 0.01Lux/F1.2|
|Horizontal Sync.Frequency||15.625 KHZ||15.625 KHZ|
|Vertical Sync.Frequency||50 HZ||50 HZ|
|Video Output||1.0Vp-P75 Ohm||1.0Vp-P75 Ohm|
|S/N ratio||Better than 48dB||Better than 48dB|
|Lens Angle||wide angle|
|Current Consumption (mA)||85~115|
|Power Supply (DC V)||12V||12V|
|Operating Temperature (Deg.C)||-20~+75(RH95% Max.)||-20~+75(RH95% Max.)|
|Storage Temperatur(Deg.C)||-40~+85(RH95% Max.)||-40~+85(RH95% Max.)|
For wire camera
(this link only wire)
1 x car Camera
For wireless camera:
1x car camera
